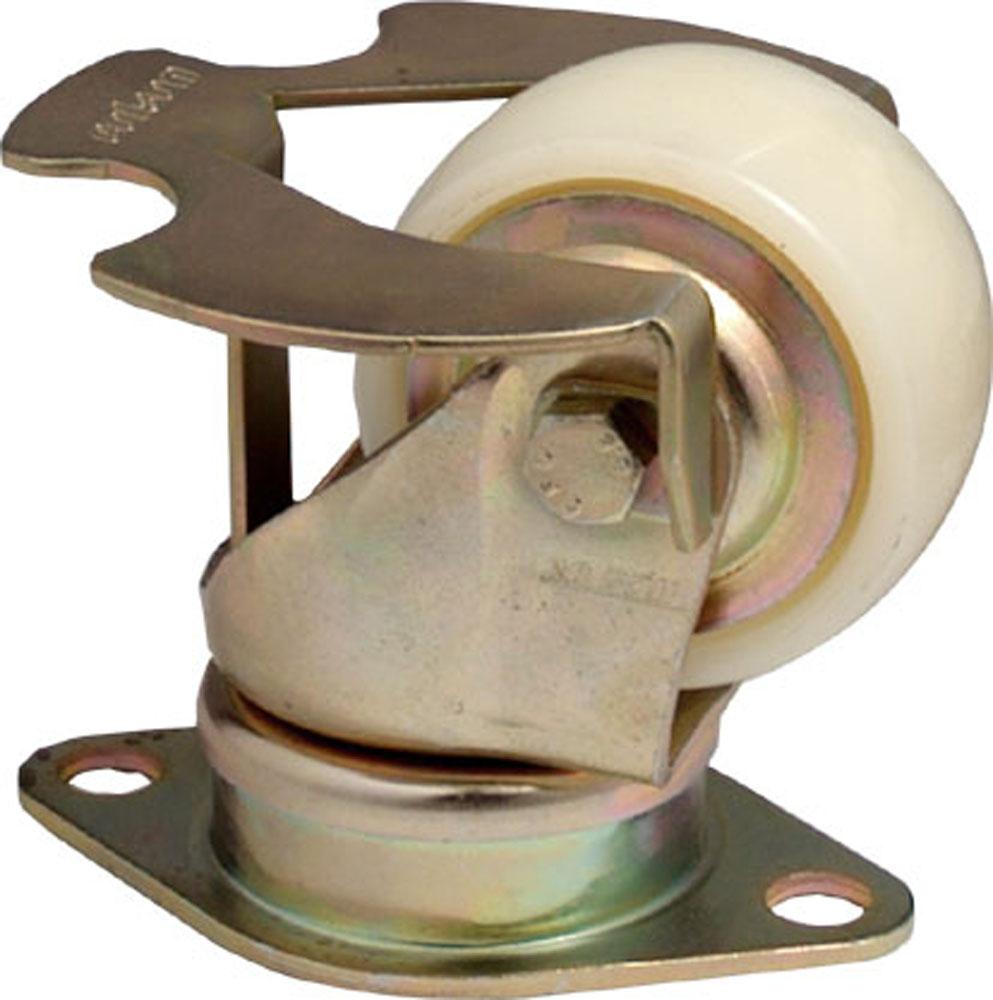

JBPN 070-CC1/AT12,7
Swivel castor 58 mm - 70 mm, 250 kg
Technical data
| Diameter | 70 mm |
| Wheel width | 35 mm |
| Hub length | 45 mm |
| Height | 102 mm |
| Offset | 25 mm |
| Top plate dimensions | 111 x 70 mm |
| Top plate hole diameter | 12 mm |
| Dist. between holes | 89 mm |
| Brake swivel radius | 60 mm |
| Load capacity | 250 kg |
| Weight | 0.94 kg |
Wheel
- Engineered Polyamide wheel with one sealed deep groove ball bearing
Technical description
- Swivel fork with sealed deep groove ball bearing operating temperatures from -30°C to + 80°C
