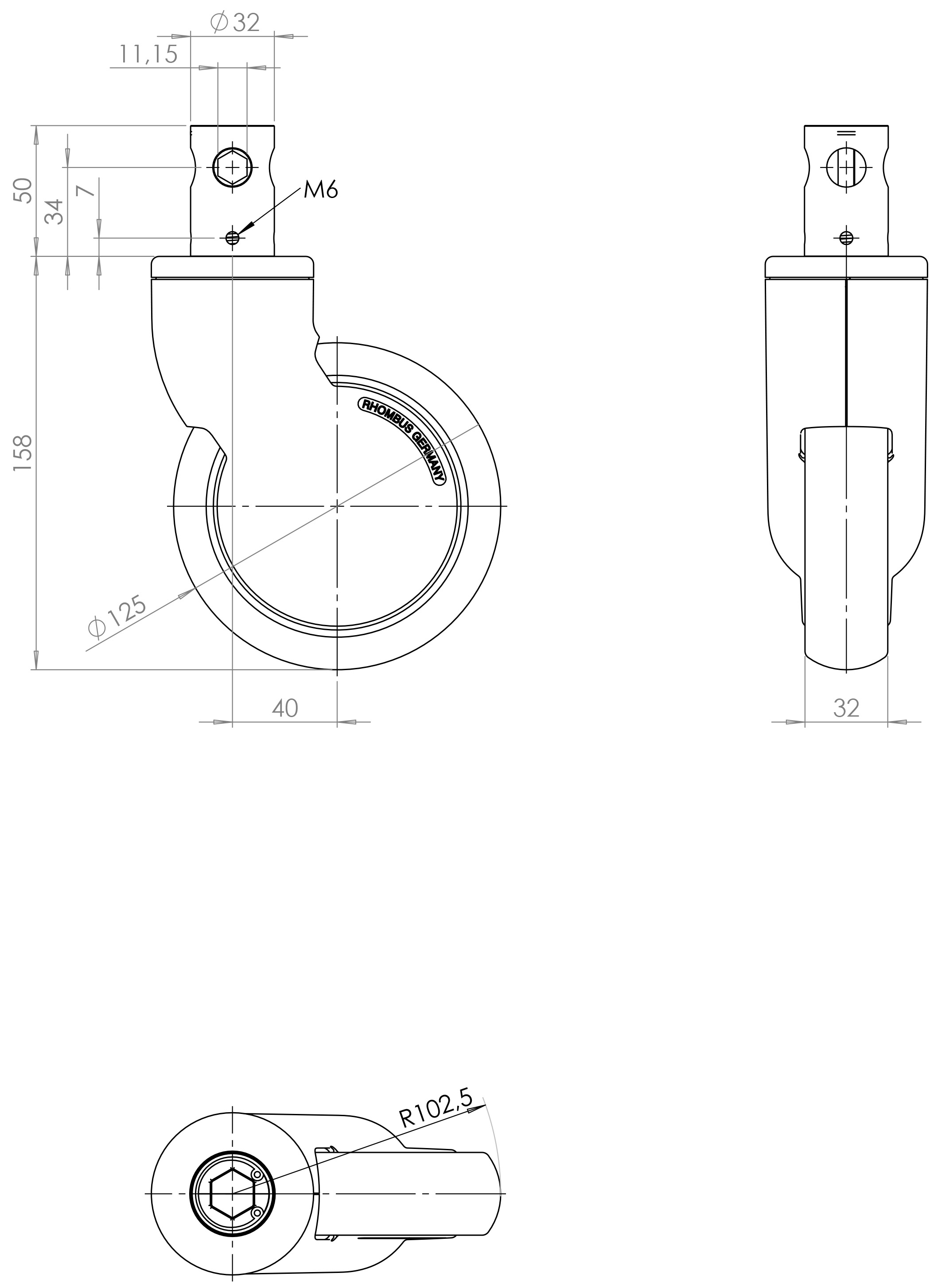

Swivel castor with central total brake, 125 mm - 200 mm, 150 kg

Part number: 398q 29K125y K985NP (M19QZ-UF2K125-AS PRIMACY)

Diameter	Tread width	Height	Offset	Stem size	Brake swivel radius	Load capacity
125 mm	32 mm	158 mm	40 mm	32x50 (30°)mm	103 mm	150 kg
125 mm	32 mm	158 mm	40 mm	32x50 (30°) mm	103 mm	150 kg
150 mm	32 mm	188 mm	42 mm	32x50 (30°) mm	117 mm	150 kg
150 mm	32 mm	188 mm	42 mm	32x50 (30°) mm	117 mm	150 kg
200 mm	32 mm	229 mm	56 mm	32x50 (30°) mm	mm	150 kg
200 mm	32 mm	229 mm	56 mm	32x50 (30°) mm	mm	150 kg
