Wheels & Accessories
The composition of the tyre and the various types of wheel rims or hubs as well as various wheel bearings give the wheel many different properties. Because of this wheels have differing load capacities, resistance to rolling and operational qualities.
08R080cZ
Wheel 80 mm - 200 mm, 50 kg - 205 kg
Technical data
| Diameter | 80 mm |
| Tread width | 20 mm |
| Hub length | 35 mm |
| Wheel axle diameter | 12 mm |
| Load capacity | 50 kg |
| Weight | 273 g |
Wheel
- solid rubber tyre black (Shore A 80)
- sheet steel metal rim zinc passivated
- roller bearing
08R080cZ-5
On request
Wheel 80 mm - 200 mm, 70 kg - 230 kg
Technical data
| Diameter | 80 mm |
| Tread width | 22 mm |
| Hub length | 39 mm |
| Wheel axle diameter | 14 mm |
| Load capacity | 70 kg |
Wheel
- solid rubber tyre black (Shore A 80)
- sheet steel metal rim zinc passivated
- roller bearing
0SG100p
Wheel 100 mm - 200 mm, 500 kg - 1000 kg
Technical data
| Diameter | 100 mm |
| Tread width | 45 mm |
| Hub length | 58 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 500 kg |
| Weight | 226 g |
Wheel
- polyamide white
- plain bearing
- heavy execution
0SK085p
Wheel 85 mm - 250 mm, 1200 kg - 1500 kg
Technical data
| Diameter | 85 mm |
| Tread width | 85 mm |
| Hub length | 85 mm |
| Wheel axle diameter | 17 mm |
| Load capacity | 1200 kg |
Wheel
- polyamide white
- precision ball bearing
- heavy execution
0SR100p
Wheel 100 mm - 200 mm, 500 kg - 1000 kg
Technical data
| Diameter | 100 mm |
| Tread width | 45 mm |
| Hub length | 58 mm |
| Wheel axle diameter | 20 mm |
| Load capacity | 500 kg |
| Weight | 396 g |
Wheel
- polyamide white
- roller bearing
- heavy execution
14R100d
Wheel 100 mm - 125 mm, 140 kg
Technical data
| Diameter | 100 mm |
| Tread width | 26 mm |
| Hub length | 35 mm |
| Wheel axle diameter | 12 mm |
| Load capacity | 140 kg |
| Weight | 509 g |
Wheel
- elastic solid rubber tyre blue (Shore A 70)
- vulcanised firmly on plastic wheel centre black
- roller bearing
18K085v-85-17
On request
Wheel 85 mm, 700 kg
Technical data
| Diameter | 85 mm |
| Tread width | 85 mm |
| Hub length | 85 mm |
| Wheel axle diameter | 17 mm |
| Load capacity | 700 kg |
Wheel
- Polyurethane tyre red-orange (Shore A 95)
- bonded on cast wheel centre
- precision ball bearing
18K100v-40-15
On request
Wheel 100 mm - 250 mm, 275 kg - 1800 kg
Technical data
| Diameter | 100 mm |
| Tread width | 40 mm |
| Hub length | 40 mm |
| Wheel axle diameter | 15 mm |
| Load capacity | 275 kg |
Wheel
- Polyurethane tyre red-orange (Shore A 95)
- bonded on cast wheel centre
- precision ball bearing
21C KFAD
Wheel 50 mm - 150 mm, 40 kg - 120 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Hub length | 22 mm |
| Wheel axle diameter | 6 mm |
| Load capacity | 40 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys

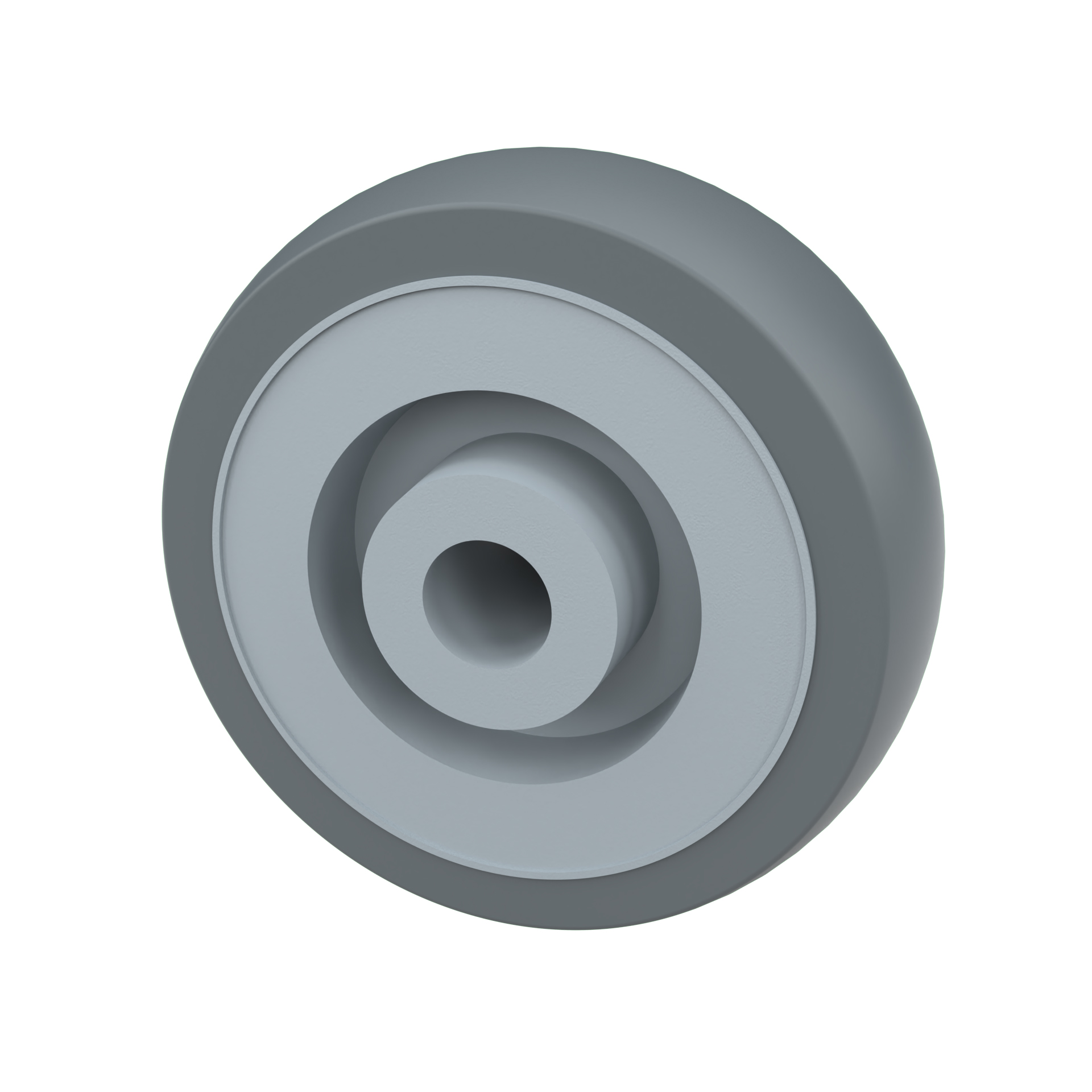

21G
Wheel 50 mm - 150 mm, 40 kg - 120 kg
Technical data
| Diameter | 50 mm |
| Tread width | 18 mm |
| Hub length | 21,5 mm |
| Wheel axle diameter | 8 mm |
| Load capacity | 40 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- plain bearing
- on request further variants available
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
