AV05QRP125TLTP11 (AVANT)
On request
Swivel castor with total brake mounted behind 75 mm - 150 mm, 80 kg - 100 kg
Technical data
| Diameter | 125 mm |
| Tread width | 32 mm |
| Height | 170 mm |
| Offset | 40 mm |
| Top plate dimensions | 77x67 mm |
| Top plate hole diameter | 8 mm |
| Dist. between holes | 61x51/56x46 mm |
| Load capacity | 100 kg |
Technical description
- plastic castor with sealed precision ball bearings in swivel section
- maintenance-free construction
- on request with grey total brake pedal available
Areas of application
- medical equipment
- transport trolleys
- food transport equipment
- Laundry carts
- etc.
AV05QRP125TLTS07 (AVANT)
On request
Swivel castor with total brake mounted behind 125 mm, 100 kg
Technical data
| Diameter | 125 mm |
| Tread width | 32 mm |
| Height | 162 mm |
| Offset | 40 mm |
| Threaded stem size | M 12x21,5 mm |
| Load capacity | 100 kg |
Technical description
- plastic castor with sealed precision ball bearings in swivel section
- maintenance-free construction
- on request with grey total brake pedal available
Areas of application
- Laundry carts
- electronic equipment
- food transport equipment
- medical & diagnostic equipment
- transport trolleys

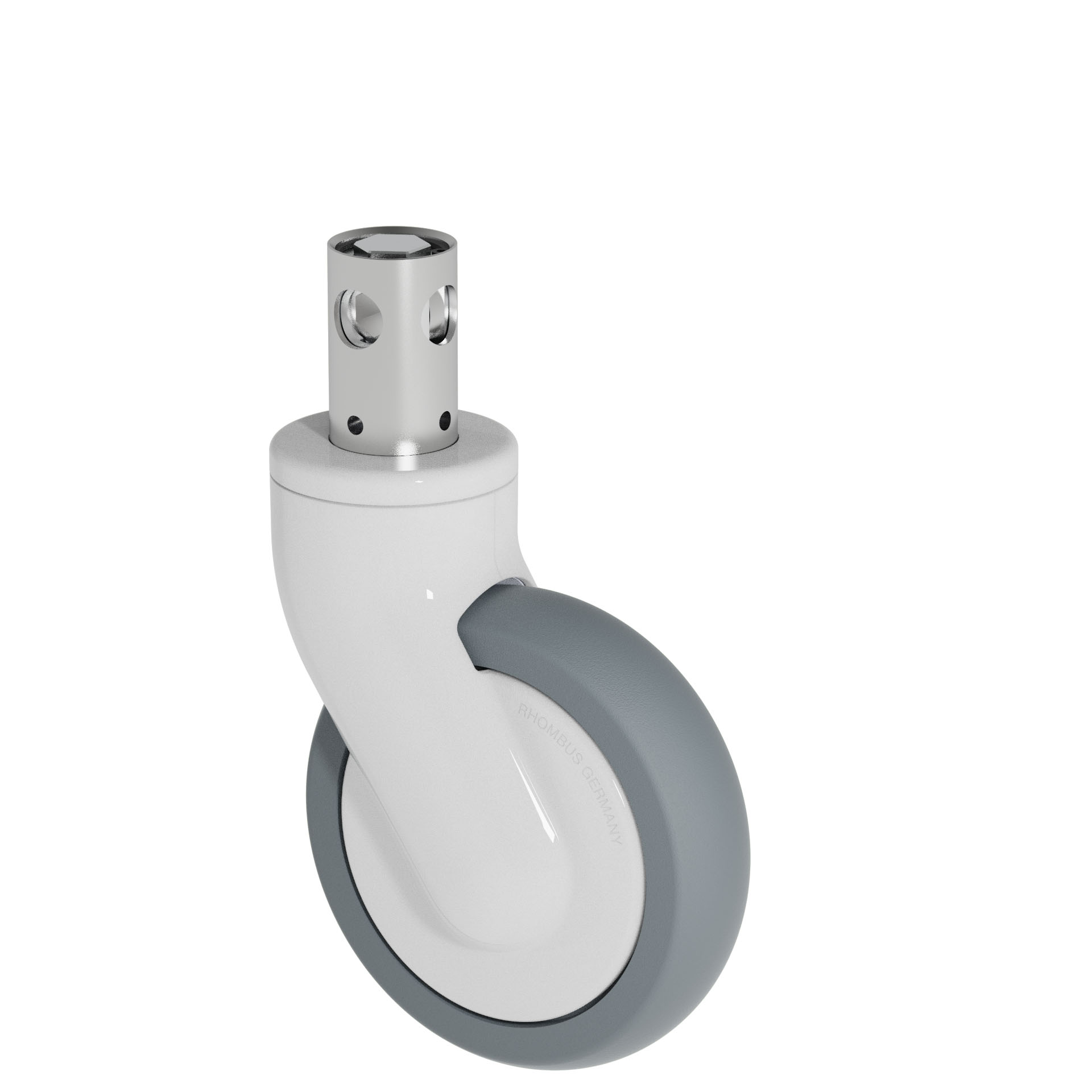

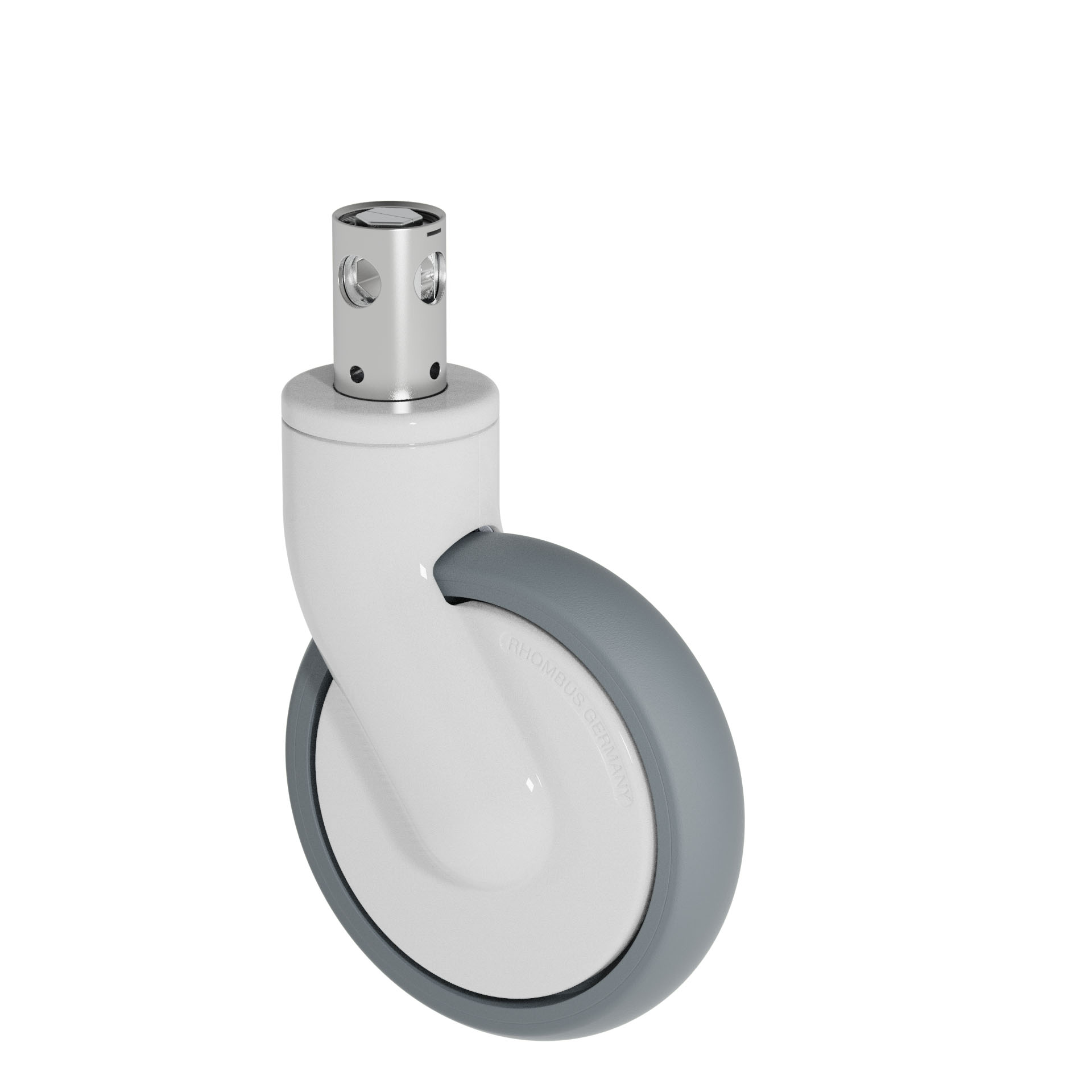

KH2Q-51C-Z985-01 (VIVAX HBC)
Swivel castor with central total brake 125 mm - 150 mm, 100 kg
Technical data
| Diameter | 125 mm |
| Tread width | 32 mm |
| Height | 164 mm |
| Offset | 46 mm |
| Load capacity | 100 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- High-performance plastic housing with steel stem and two ball bearings in swivel head for high load capacities
- smooth selection function
- integrated selection mechanism with total locking brake "q" and direction locking brake "r"
- permanently grease filled in the switch mechanism
- also available with electrically conductive wheel
Areas of application
- care beds
- hospital beds
KSD-31C-L10 (VIVAX)
Swivel castor with directional lock 75 mm - 125 mm, 70 kg - 100 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 30 mm |
| Height | 109 mm |
| Offset | 41,5 mm |
| Bolt hole diameter | 10 mm |
| Load capacity | 70 kg |
| Weight | 345 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSD-31C-L12 (VIVAX)
Swivel castor with directional lock 75 mm - 125 mm, 70 kg - 100 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 30 mm |
| Height | 109 mm |
| Offset | 41,5 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 70 kg |
| Weight | 345 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSD-31C-P100 (VIVAX)
Swivel castor with directional lock 75 mm - 125 mm, 70 kg - 100 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 30 mm |
| Height | 115 mm |
| Offset | 41,5 mm |
| Top plate dimensions | 100x80 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/75x60 mm |
| Load capacity | 70 kg |
| Weight | 550 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSD-31C-P77 (VIVAX)
Swivel castor with directional lock 75 mm - 125 mm, 70 kg - 100 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 30 mm |
| Height | 115 mm |
| Offset | 41,5 mm |
| Top plate dimensions | 77x66 mm |
| Top plate hole diameter | 8,3 mm |
| Dist. between holes | 61x51/56x46 mm |
| Load capacity | 70 kg |
| Weight | 500 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSD-31C-P95 (VIVAX)
Swivel castor with directional lock 75 mm - 125 mm, 70 kg - 100 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 30 mm |
| Height | 115 mm |
| Offset | 41,5 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 8,5/10 mm |
| Dist. between holes | 75x45/72x54 mm |
| Load capacity | 70 kg |
| Weight | 530 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSF-31C-L10 (VIVAX)
Swivel castor with total brake mounted behind 75 mm - 125 mm, 70 kg - 100 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 30 mm |
| Height | 109 mm |
| Offset | 41,5 mm |
| Bolt hole diameter | 10 mm |
| Load capacity | 70 kg |
| Weight | 345 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSF-31C-L12 (VIVAX)
Swivel castor with total brake mounted behind 75 mm - 125 mm, 70 kg - 100 kg
Technical data
| Diameter | 75 mm |
| Wheel width | 30 mm |
| Height | 109 mm |
| Offset | 41,5 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 70 kg |
| Weight | 345 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
