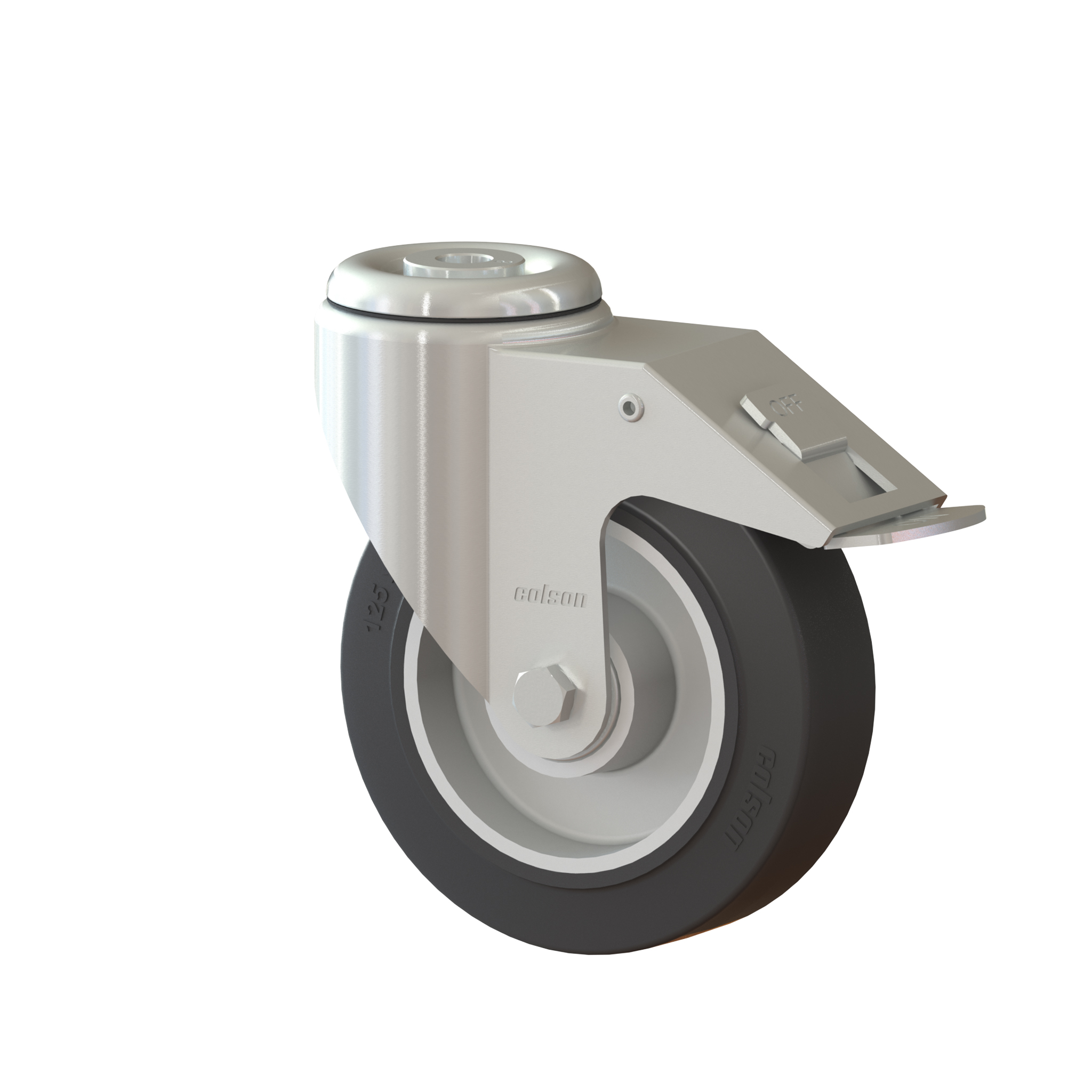

Swivel castor with total brake mounted behind, 100 mm, 150 kg

Part number: I61TZ-BM7T100
(Veloris)

Technical data

Diameter	100 mm
Wheel width	40 mm
Height	128 mm
Offset	34 mm
Bolt hole diameter	12,5 mm
Brake swivel radius	124 mm
Load capacity	150 kg

Technical description

• pressed components made of carbon steel
• protected with an additional
• electro-galvanized zinc coating
• fork headwork with a double ball race bearing



Wheel

• die-cast aluminium hub
• wheel tread made of natural rubber in black
• color
• with a hardness of 67 +/- 5 Shore A
• double ball bearing
• *On request: antistatic version or grey tread available.
