Download datasheet

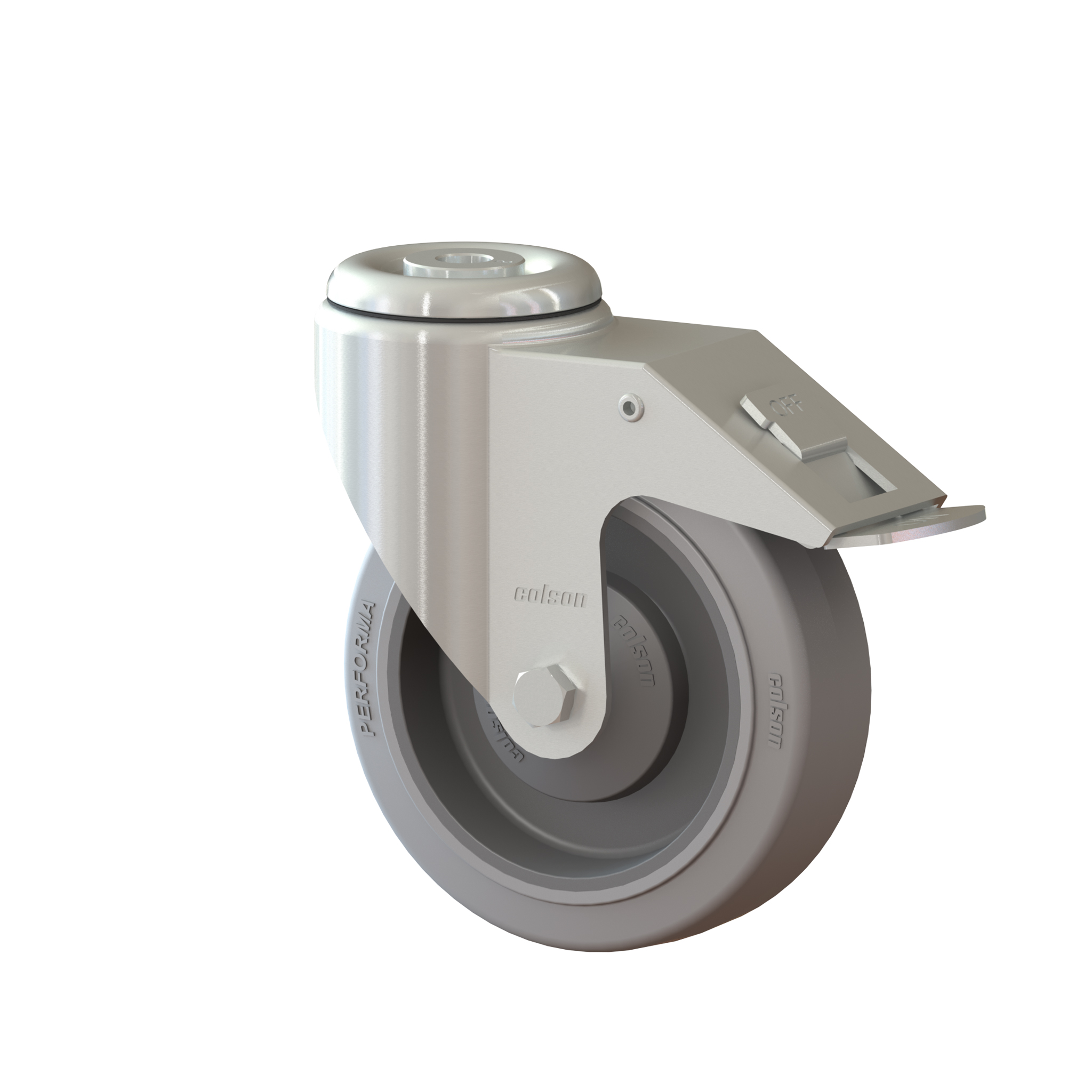

Swivel castor with total brake mounted behind, 80 mm - 200 mm, 120 kg - 280 kg

Part number: I61TZ-PL1K080
(Veloris)

I61TZ-PL1K080

Technical data

Diameter 80 mm
Wheel width 32 mm
Height 105 mm
Offset 34 mm
Bolt hole diameter 12,5 mm
Brake swivel radius 123 mm
Load capacity 120 kg

Technical description

  • pressed components made of carbon steel
  • protected with an additional
  • electro-galvanized zinc coating
  • fork headwork with a double ball race bearing



Wheel

  • dark grey polypropylene hub
  • PERFORMA® tread made of
  • thermoplastic elastomer in grey color with a hardness of 65 ± 5 Shore A
  • Ø80-125
  • mm single ball bearing
  • Ø160-200 mm double ball bearing

Variants

Diameter Wheel width Height Offset Bolt hole diameter Brake swivel radius Load capacity
I61TZ-PL1K080 80 mm 32 mm 105 mm 34 mm 12,5 mm 123 mm 120 kg
I61TZ-PL1K100 100 mm 32 mm 128 mm 34 mm 12,5 mm 124 mm 150 kg
I61TZ-PL1K125 125 mm 40 mm 156 mm 38 mm 12,5 mm 140 mm 180 kg
I61TZ-PL1K160 160 mm 50 mm 195 mm 53 mm 13 mm 166 mm 225 kg
I61TZ-PL1K200 200 mm 50 mm 235 mm 53 mm 13 mm 166 mm 280 kg
Reach compliant
Map
Rohs compliant
