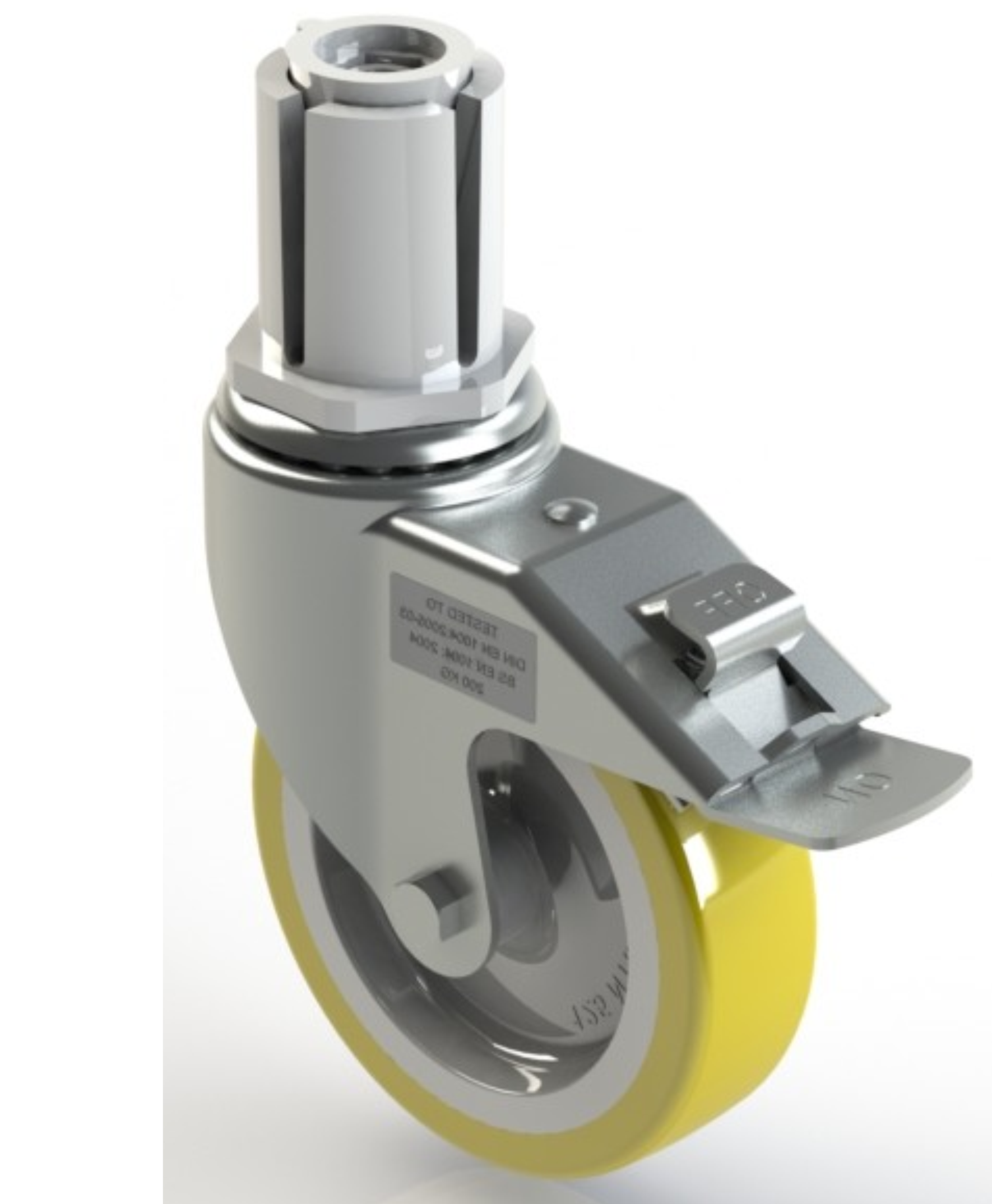

Swivel castor with wheel locking brake, 125 mm, 200 kg
Part number: XSD 125 NYOC R22L - 0640-0327
Technical data
| Diameter | 125 mm |
| Tread width | 35 mm |
| Height | 160 mm |
| Offset | 40 mm |
| Stem size | 47 mm |
| Brake swivel radius | 144 mm |
| Load capacity | 200 kg |
Technical description
- pressed components made of carbon steel, protected with an additional electro-galvanized zinc coating
- fork headwork with a double ball race bearing
Wheel
- injection-molded PA6 nylon, white hub
- wheel tread in yellow color with
- a hardness of 75 ± 5 Shore A
- plain bearing
