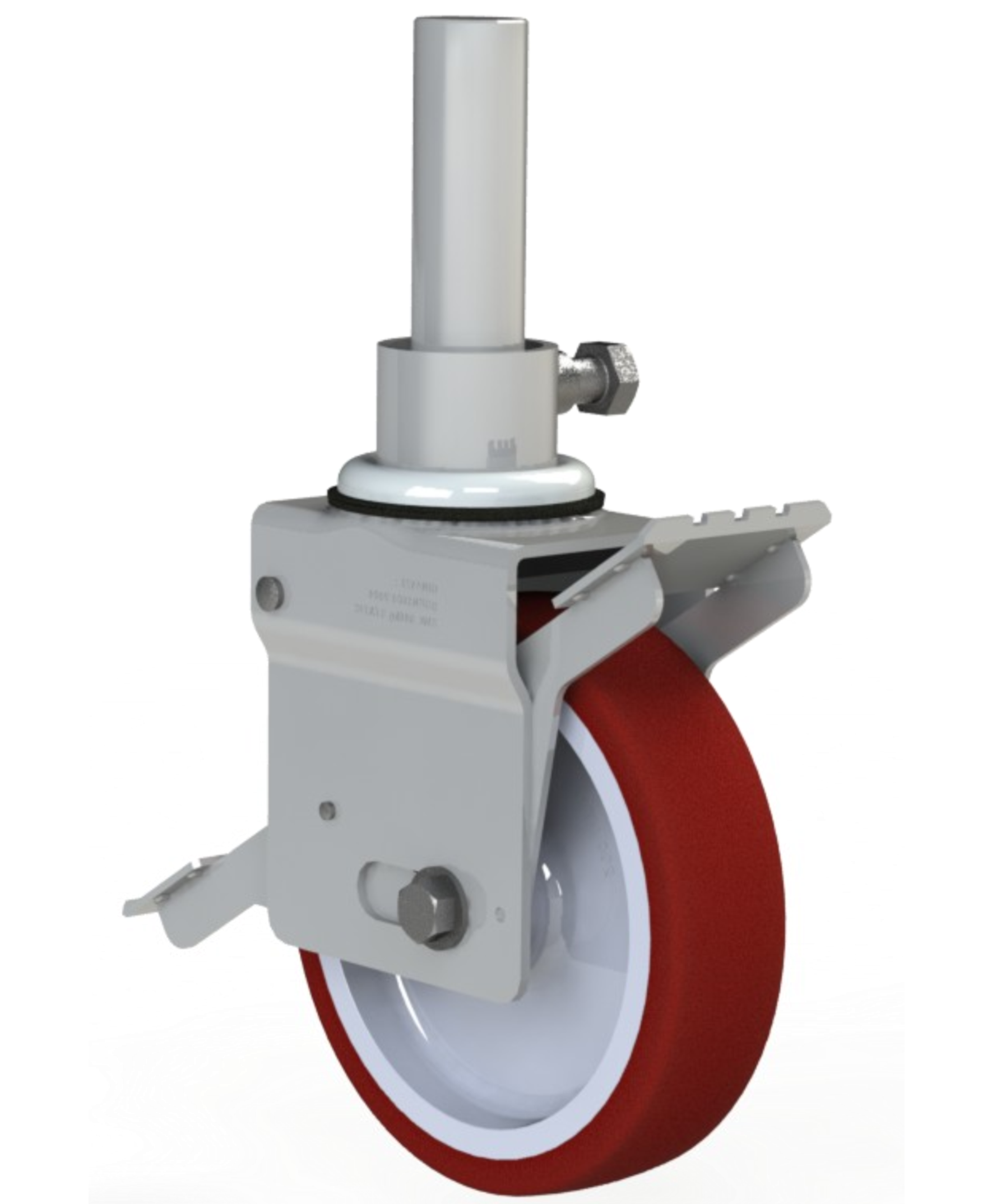

200 mm, 820 kg

Part number: SJE 200 NTOE CS2 B - 0629-9027

Technical data

Diameter	200 mm
Tread width	50 mm
Height	240 mm
Offset	34 mm
Stem size	38/50 mm
Brake swivel radius	165 mm
Load capacity	820 kg

Technical description

• pressed components made of carbon steel, protected with an additional electro-galvanized zinc coating
• fork headwork with a double ball race bearing



Wheel

• white nylon hub
• polyurethane TPU wheel tread in red color with a hardness of 95 ± 5 Shore A
• plain bearing
