125 mm - 200 mm, 600 kg - 820 kg

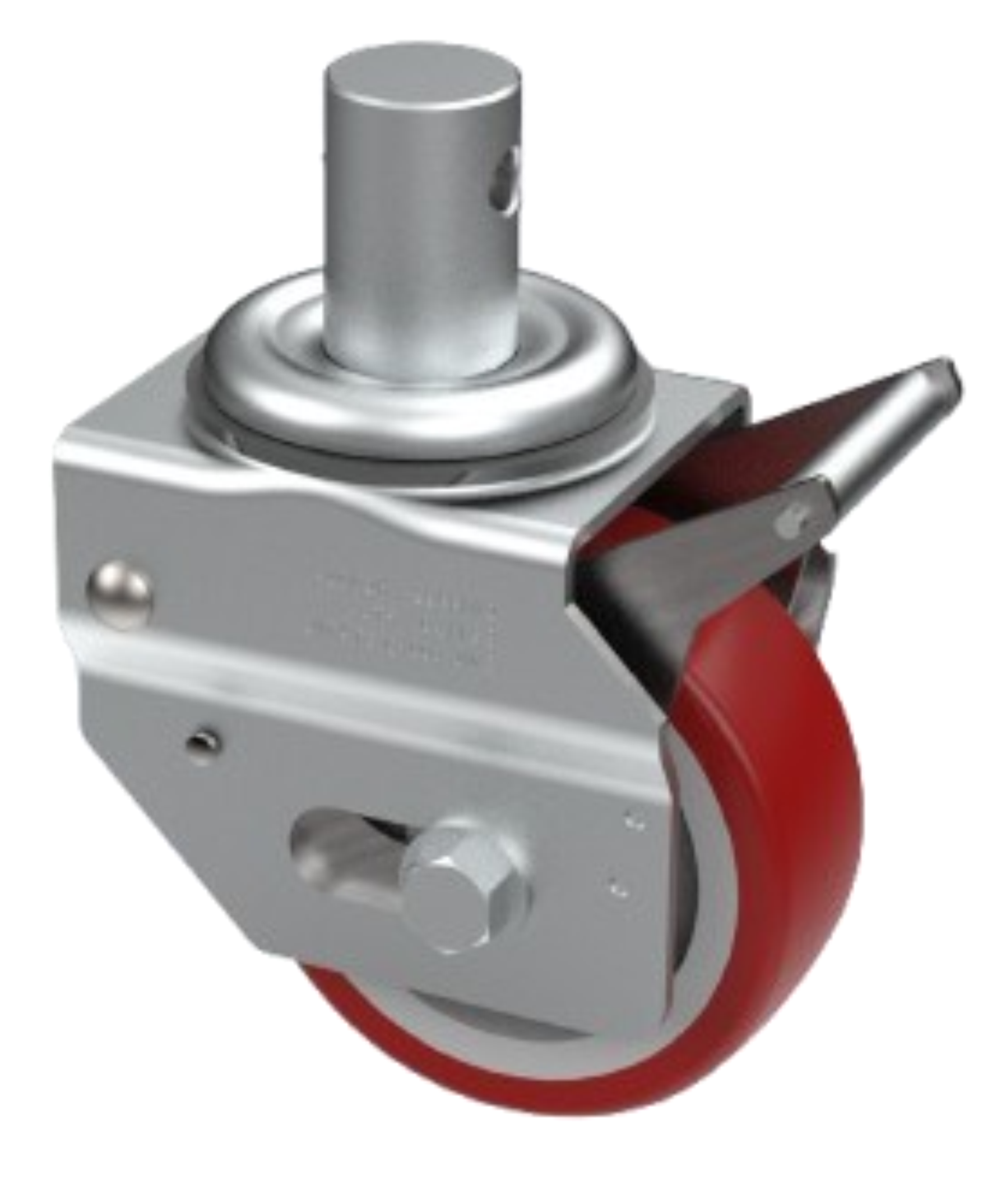

Part number: SJE 125 NTOE B21 BX4

Technical data

Diameter 125 mm
Tread width 45 mm
Height 160 mm
Offset 30 mm
Stem size 38x52 mm
Brake swivel radius 165 mm
Load capacity 600 kg

Technical description

  • pressed components made of carbon steel, protected with an additional electro-galvanized zinc coating
  • fork headwork with a double ball race bearing



Wheel

  • white nylon hub, polyurethane TPU wheel tread in red color with a hardness of 95 ± 5 Shore A
  • plain bearing

Areas of application

  • Scaffold

Variants

Diameter Tread width Height Offset Stem size Brake swivel radius Load capacity
125 mm 45 mm 160 mm 30 mm 38x52 mm 165 mm 600 kg
200 mm 50 mm 240 mm 34 mm 38x52 mm 165 mm 820 kg
200 mm 50 mm 240 mm 34 mm 38x52 mm 165 mm 820 kg
