125 mm - 200 mm, 500 kg - 820 kg

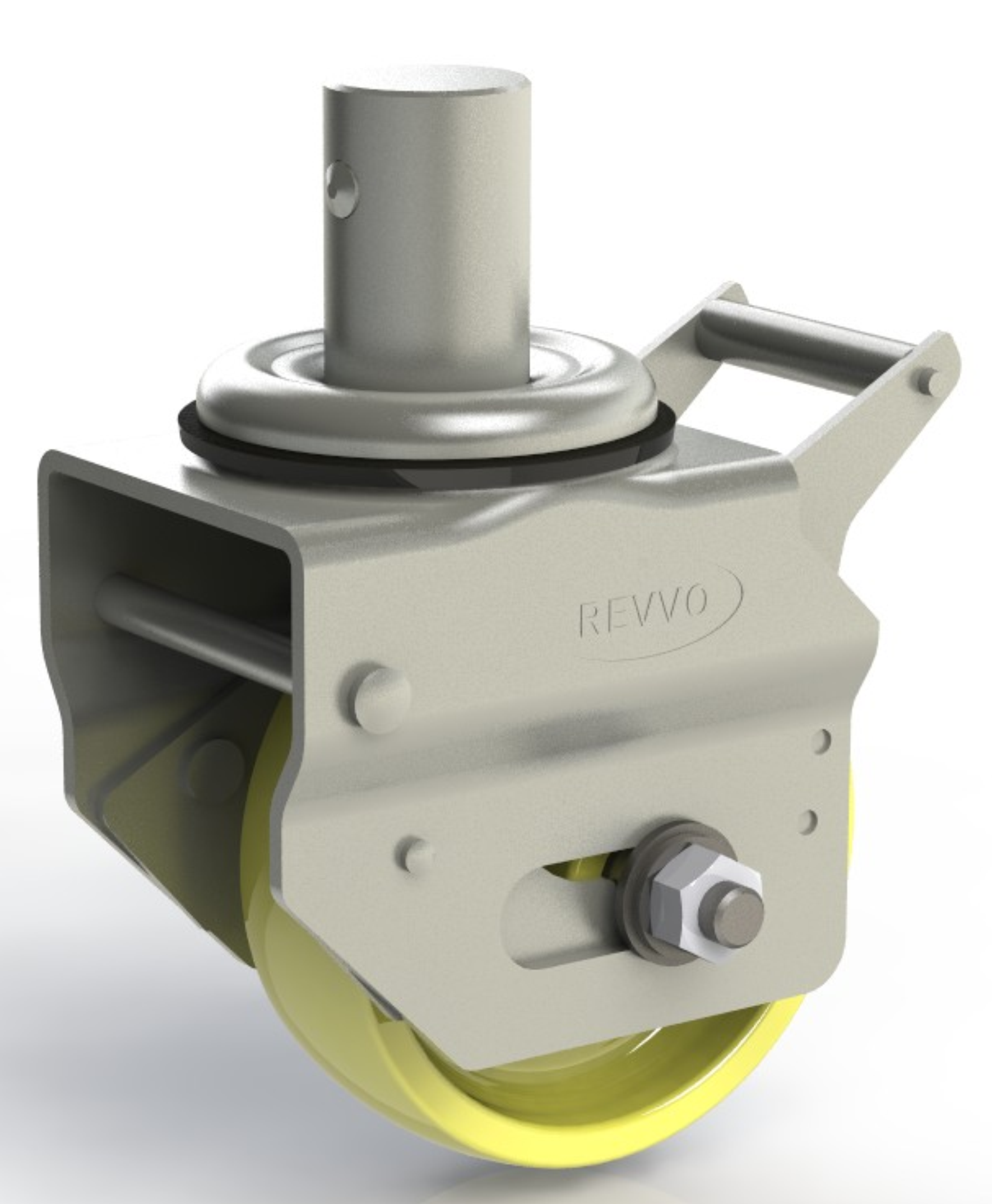

Part number: SJE 125 NYOY B21 BX4 - 0640-0193

Technical data

Diameter 125 mm
Tread width 40 mm
Height 160 mm
Offset 34 mm
Stem size 38x52 mm
Brake swivel radius 165 mm
Load capacity 500 kg

Technical description

  • pressed components made of carbon steel, protected with an additional electro-galvanized zinc coating
  • fork headwork with a double ball race bearing



Wheel

  • injection-molded PA6 nylon in BS 381C Bold Yellow No. 363 color with a hardness of 75 ± 5 Shore D
  • plain bearing

Areas of application

  • Scaffold

Variants

Diameter Tread width Height Offset Stem size Brake swivel radius Load capacity
125 mm 40 mm 160 mm 34 mm 38x52 mm 165 mm 500 kg
150 mm 45 mm 190 mm 34 mm 38x52 mm 165 mm 820 kg
200 mm 50 mm 240 mm 34 mm 38x52 mm 165 mm 820 kg
