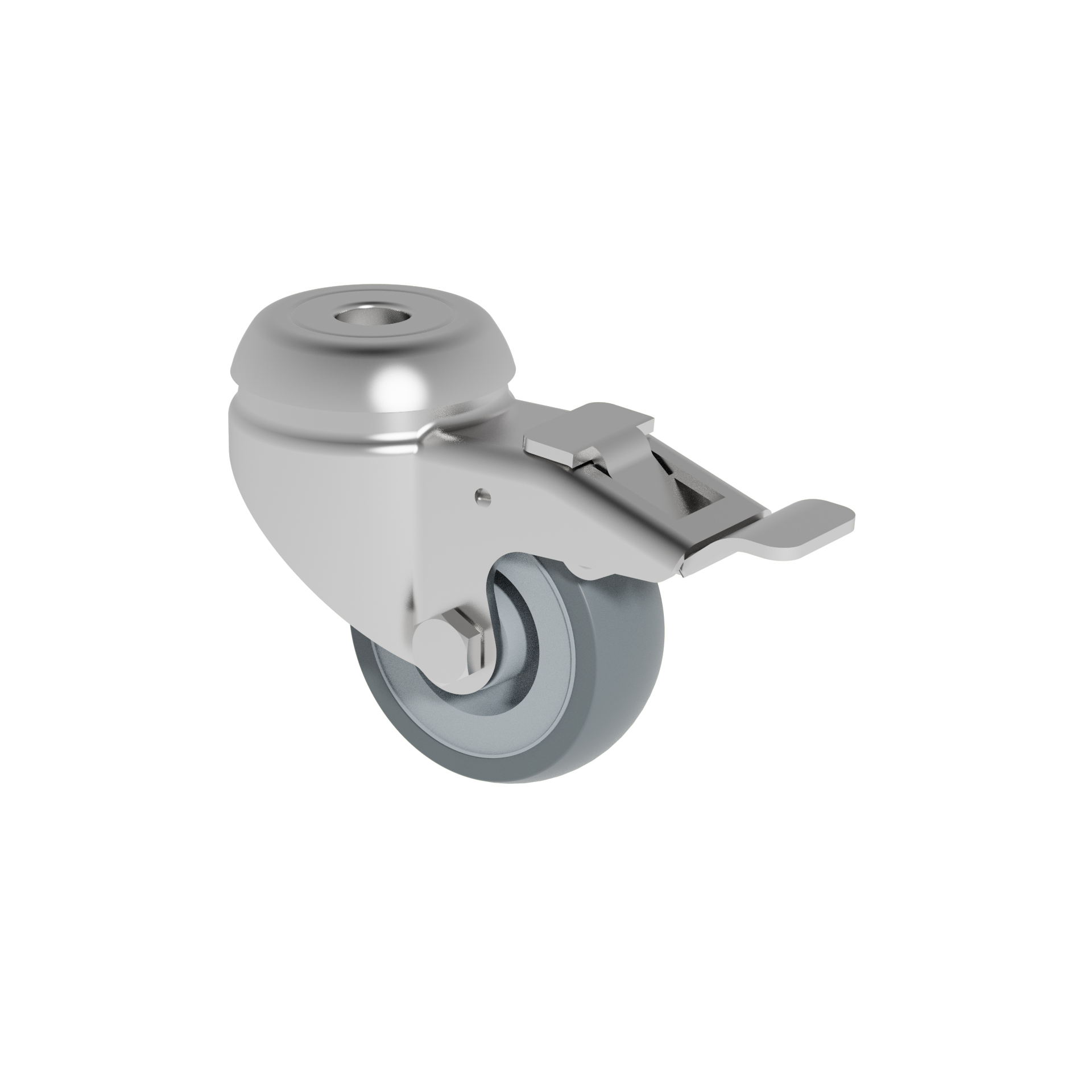

Swivel castor with total brake mounted behind, 50 mm - 100 mm, 50 kg - 75 kg
Part number: GMF-21C-L10 (Serie/s GM)
Technical data
| Diameter | 50 mm |
| Tread width | 22 mm |
| Hub length | 22 mm |
| Height | 69 mm |
| Offset | 23 mm |
| Bolt hole diameter | 11 mm |
| Brake swivel radius | 75 mm |
| Load capacity | 50 kg |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Areas of application
- bedside cabinets
- brochure display stands
- computer tables
- display stands
- dustbins
- file carts
- garment stands
- greeting card dispensers
- housekeeping carts
- infusion stands
- newspaper dispensers
- sales stands
- small furniture
- sport equipment
Variants
| Diameter | Tread width | Hub length | Height | Offset | Bolt hole diameter | Brake swivel radius | Load capacity | |
|---|---|---|---|---|---|---|---|---|
| 50 mm | 22 mm | 22 mm | 69 mm | 23 mm | 11 mm | 75 mm | 50 kg | |
| 75 mm | 28 mm | 28 mm | 98 mm | 24 mm | 11 mm | 81 mm | 60 kg | |
| 100 mm | 30 mm | 30 mm | 122 mm | 25 mm | 11 mm | 90 mm | 75 kg |
