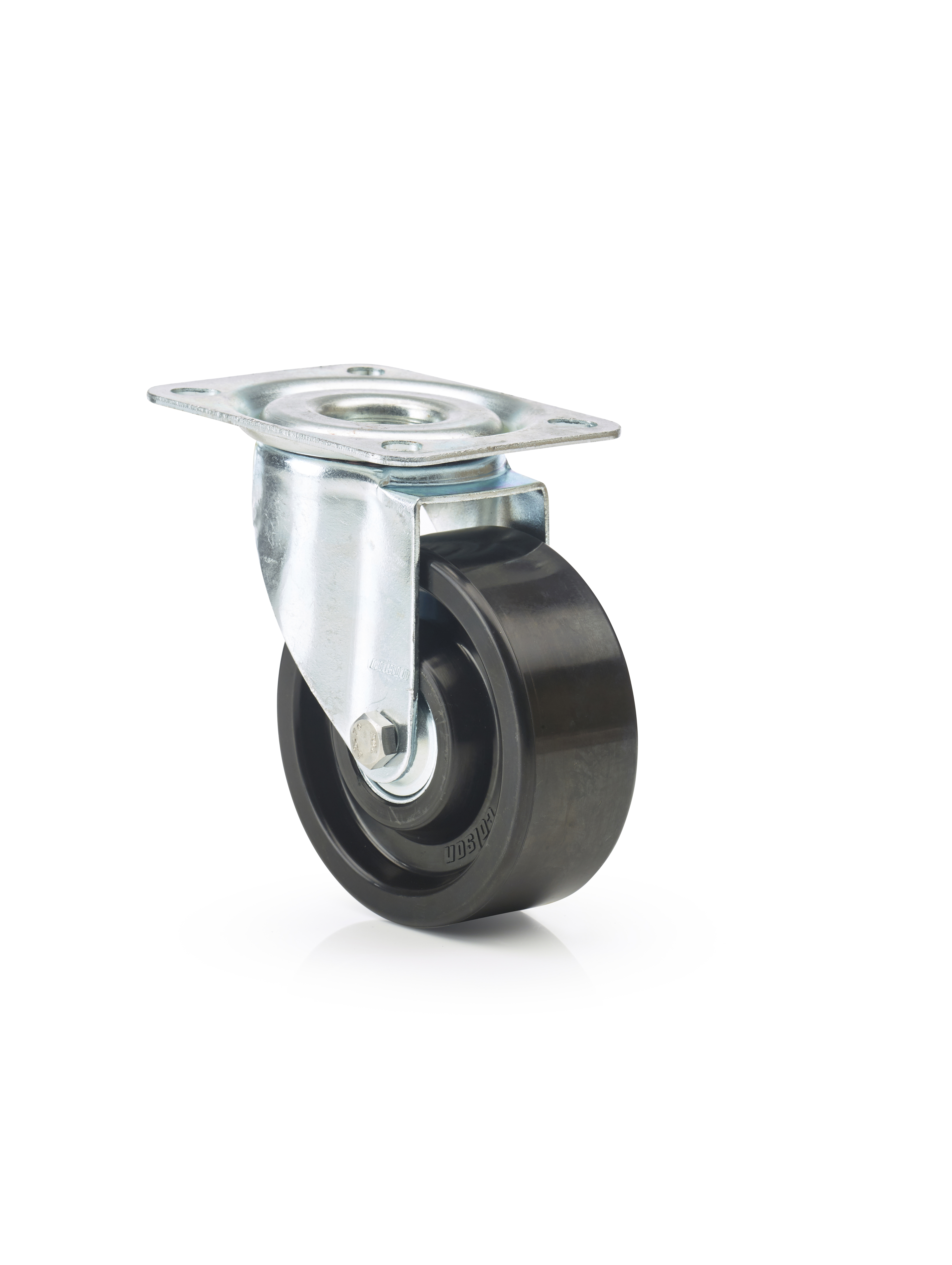

Swivel castor, 100 mm, 150 kg
Part number: JLFL 1001 6152
Technical data
| Diameter | 100 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Height | 128 mm |
| Offset | 33 mm |
| Wheel axle diameter | 8 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Load capacity | 150 kg |
| Weight | 1.2 kg |
Technical description
- Swivel fork of deep drawn zinc-coated steel
- Swivel bearing with double ball race way
- and sealring, operating temperatures -40° to +250°C
Wheel
- Phenolic wheel for light Industrial use two ball bearings with labyrinth seals and bushing operating temperatures from -40°C to +250°C
